Refresh your batteries!
With the two different modes, the LCD Smart Charger+ is not only able to recharge but also to refresh NiMH batteries whose capacity has declined over the period of use.

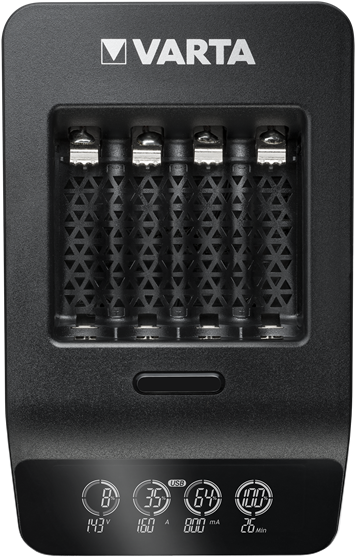

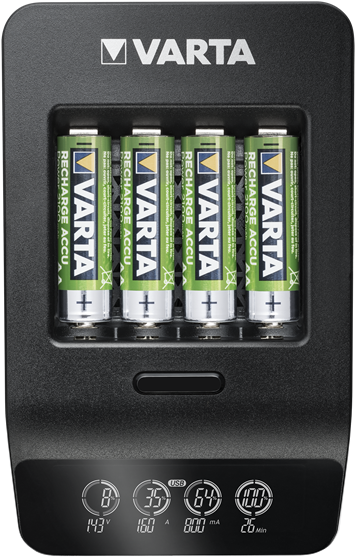

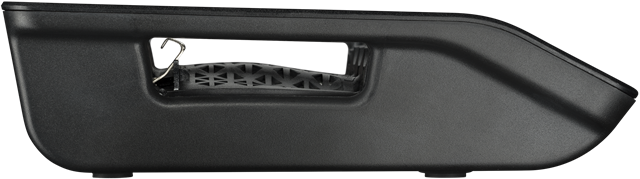

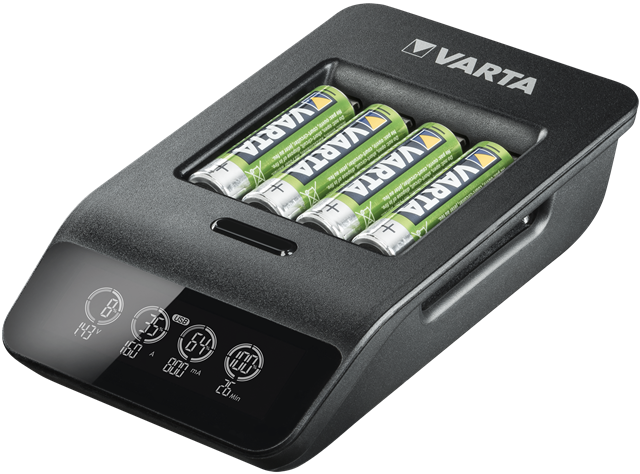

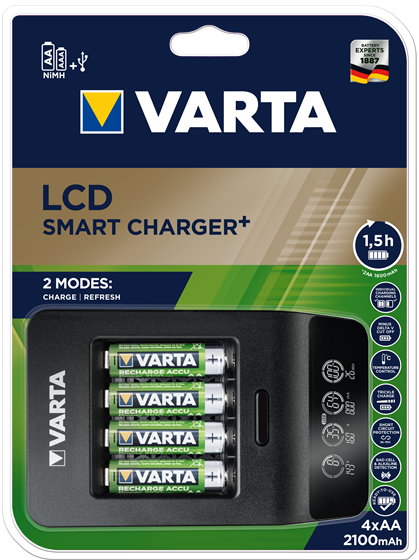

LCD SMART CHARGER+

Charging time
1,5h Charging time
Individual charging channels
Enables you to charge different numbers and combinations of cells
Minus Delta V method
Method which takes advantage of the fact that the cell voltage reduces slightly in a rechargeable battery (- Delta V), as soon as the cell is completely charged
Temperature control
The temperature of the rechargeable battery is measured whilst it is charging. If this rises above a defined maximum temperature level the charger switches itself off
Trickle Charge
Prevents the natural self-discharging process of rechargeable cells
Short Circuit Protection
Defective and short circuited cells will not be charged and will not harm the charger
Bad cell & alkaline detection
Contains criteria for switching off to prevent charging of primary cells, defect cells or cells with reverse polarity
Ready To Use
For immediate usage straight from the pack.
3 years guarantee
Global Voltage
Global voltage for worldwide use
Timer cut-off
A timer switches off after a specified time irrespective of charging status
Wrong polarity protection
Protection against reverse cell insertion
USB-out function
Charge your mobile devices by using the USB-Out Port

Overview

  • Charges up to 4 AA, AAA - charging time: 1,5 h*
  • 2 modes: charge and refresh
  • Single slot charging
  • Intelligent charging termination
  • Big and intuitive LCD screen for more convenience
  • Display indication of V, mA and min
  • Improved sensitivity of bad cell detection

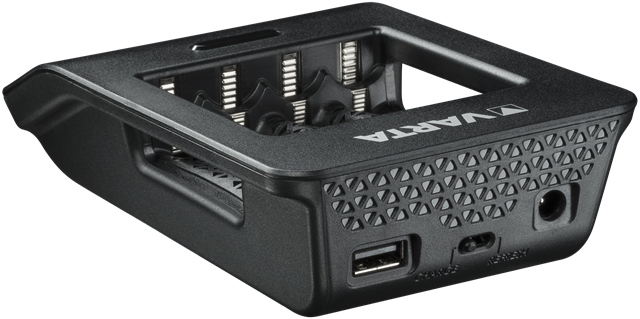

  • Additional USB output for charging external devices
  • Comprehensive safety features: Minus Delta V cut-off, safety timer, temperature control, short circuit protection, alkaline and bad cell detection
  • Individual design for an exceptional product look
  • AC adapter
  • Global voltage - worldwide use (100-240 V)
  • VARTA brand quality – 3 years guaranteed
  • Equipped with 4x RECHARGE ACCU Power AA 2100 mAh

* Based on 2 AA 1600 mAh. Performance may vary.


DETAILS

VARTA Type 57684
Cell sizes AAA, AA
System to charge Nickel Metal Hydride (NiMH)
Cell configurations:
AAA 1 - 4 pieces
AA 1 - 4 pieces
Charge currents:
AAA 1-2 AAA 800 mA ± 10%, 3-4 AAA 800 mA
AA 1-2 AA 1600 mA ± 10%, 3-4 AA 800 mA
Cut-off:
Mode -Δ v / Temperature / Timer
Control functions:
Wrong polarity protection Mechanical arrangement
Short circuit protection No current, LCD error
Alkaline and bad cell detection No current, LCD error
Backup-Timer:
1 to 4 cells AAA 2.25 h +/- 10 min
1 to 2 cells AA 2.25 h +/- 10 min
3 to 4 cells AA 5 h +/- 10 min
